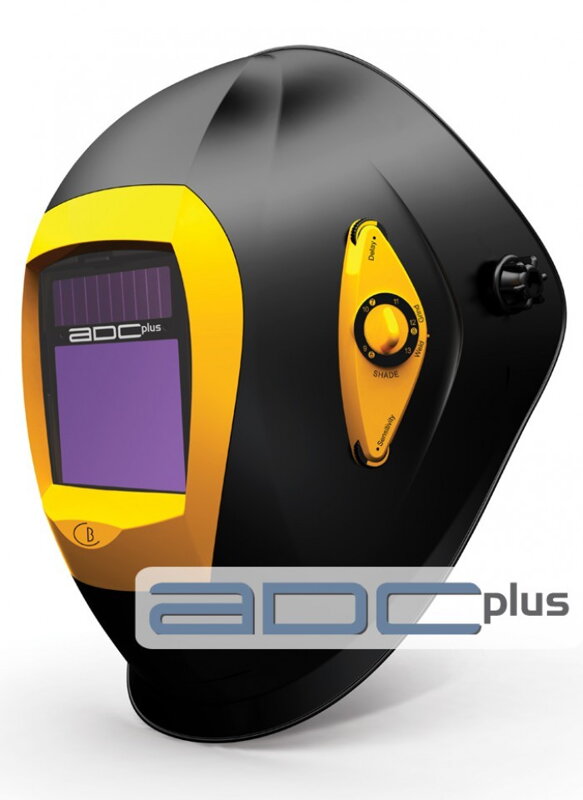

CleanAir Balder BH3 Grand GDS welding helmet

Description:

The CA-20 welding helmets are equipped with auto-darkening filters (Balder Grand) which use the revolutionary technology of Angular Dependence Compensation ADC Plus.

Areas of application:

Professional welding helmet suitable for all welding methods including TIG, even with very low welding current.

Features & Benefits:

• Attractive design
• Low weight
• Enlarged viewing area 97×68 mm
• ADC plus technology provides the best optical quality 1/1/1/1 and improved colour recognition thanks to a revolutionary UV/IR filter, certified for grinding operations as well

Technical data:

• Weight 565 g
• Certification EN 379 EN 379
• Optical classes 1 / 1 / 1 / 1
• Viewing area 97 x 68 mm
• Filter opening 110 × 110 mm
• Weight 165 g
• Open state shade 4
• Closed state shade 6–8 / 9–13
• Shade adjustment external
• Sensitivity adjustment external
• Delay adjustment external
• Grinding mode external
• Switching time at +23 °C 0,15 ms
• Clearing time 0,2 – 0,8 s
• UV/IR protection UV 16/IR 16
• Temperature range −10 °C / +60 °C
• TIG detection enhanced
• Energy supply solar cells – no battery change
