CA-27 AerTEC™ YOGA

• the new YOGA helmet concept uses a light and durable skeleton in combination with a high-quality ADF AerTEC ™ X110 True color 9-13 self-darkening filter
• this solution is suitable for all welding methods, including the TIG method, even at very low currents
• excellent price / performance ratio
• low weight and high comfort
• above-standard field of view 100x53 mm
• continuous darkening adjustment in the range 9-13
• wide range of sensitivity settings
• individual dimming deceleration adjustment function
• possibility of grinding mode
• compatible with CleanAIR breathing systems

Technical specification welding auto-darkening filter (ADF) AerTEC™ X110 true colour, 9-13:

• True colour  Yes
• Product code 40 51 10
• Standards EN 379
• Optical classes 1/1/1/2
• Cartridge size 110 x 90 x 9 mm
• Viewing area 100 x 53 mm
• Weight 120 g
• Arc sensors number 4
• Open state shade 4
• Closed state shade 9- 13
• Shade adjustment yes, Internal
• Sensitivity adjustment yes, Internal
• Delay adjustment yes, Internal
• Grinding mode yes, Internal
• Switching time light to dark 0,03 ms
• Switching time dark to light 0,1- 1,0 s
• UV/IR protection UV 16/ IR 16
• Power supply CR2032+ solar cell
• Low battery indication yes
• TIG recognition Enhanced
• Working temeratures -10°C + 60°C
• Warranty 2 years
• Storage conditions -10 °C to + 55 °C, humidity 20- 95% RH
• Operating conditions +0 °C to + 60, humidity 20- 95% RH

ADF options

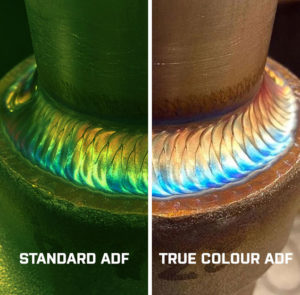

New AerTEC™ auto-darkening welding filters offer a great price-performance ratio. Advanced control options including shade, sensitivity and delay adjustment and grind/weld function are available. Wide field of vision thanks to the enlarged lens with True Colour feature (AerTEC™ X110) alowing realiastic colour perception.
