Fireball Tool Magic Square 300mm

Description:

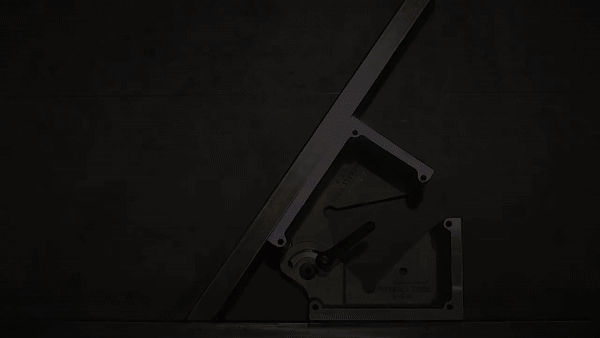

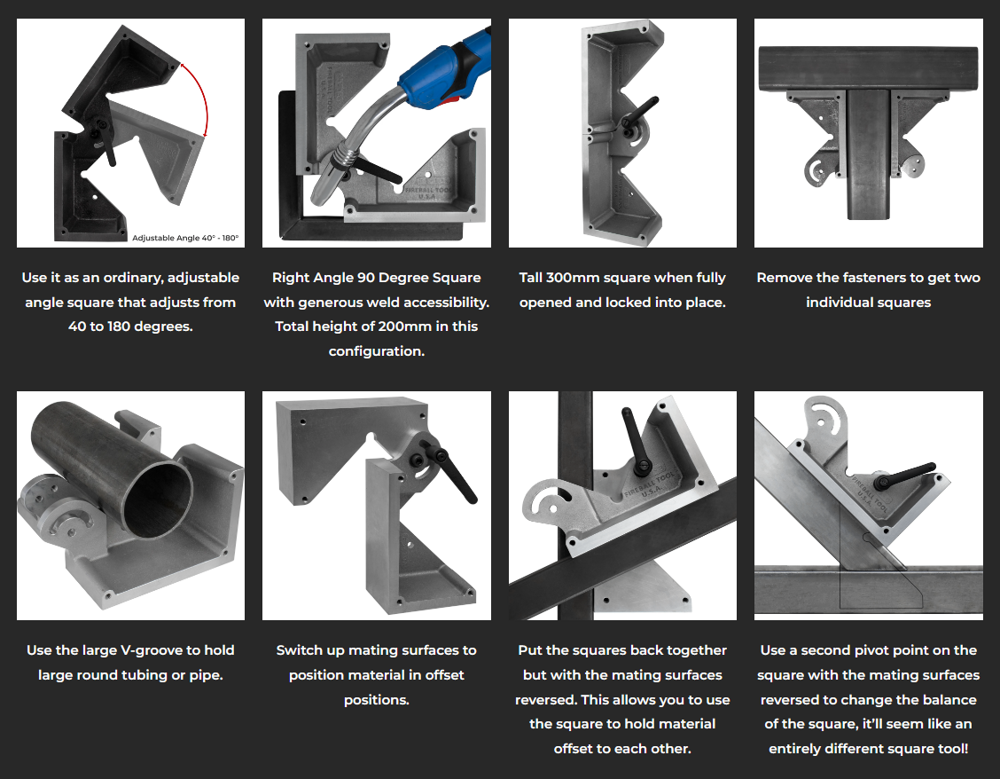

There are so many ways to use this square it seems like Magic. It's two squares in one- when you purchase one Magic Square you get two individual squares that also link together to form 5 different combo squares. A zinc adjustable handle provides tool-less angle adjustments.

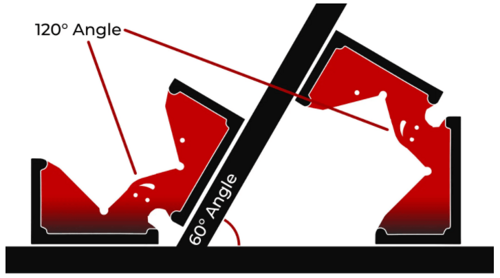

Tips For Variable Angle Settings:

One Angle Setting, Two Ways To Hold

• Each angle you set creates two useful sets of angles on the square.
• You get the main angle and a complimentary angle (one acute, one obtuse).
• The most accurate way to get an angle is to use a digital protractor. A scale is not included due to complexities in getting an accurate, high quality scale made.
• Use a 4 inch block with a flat surface as shown below to set a 90 degree angle.

DRAGON SCALE (FE)

Fireball's new Dragon Scale coating provides the corrosion resistance of our previous black oxide finish with the added benefit of enhanced spatter resistance. It's spatter resistance needs to be seen to believed; it out performs even the best weld spatter sprays without the use of any sprays.

included Accessories:

6 Edge Location Tabs
Our revolutionary tabs allow you to align your material up so that you don't even need a welding table! Don't spend thousands on a flat table, just use our squares! Tighten the tabs onto the front or back of your square and you can immediately get to work. Sure, there are different jigs out there, but can they line your material perfectly in seconds?

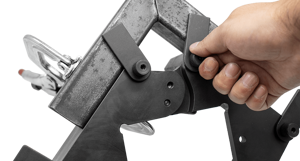

4 Tool-less Thumbscrews
But it doesn't stop there. We reinvented the game by introducing our thumbscrews. Say goodbye to your hex keys and Allen screwdrivers and freely adjust the tabs with only your fingers!

Optional Add-Ons:

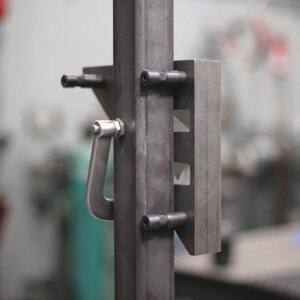

Edge Alignment Pins
Install our edge alignment pins on any square to create a large, overhanging edge which can be used to index the square on a different plane. Depending on the square, this allows you to create edges which are 90 degrees (perpendicular), 45 degrees, parallel, and even 60 and 30 degrees from the edge.

• Use it with our Monster squares to create a speed square for layout.
• Use it to hang the square off the edge of a table for working vertical or perpendicular to table surface
• Use it to elevate the squares off the ground or table for extra clearance when you're fitting and welding entire frames
• Tip! If trying to create a parallel edge with the mega square for marking, use our shims to get that perfect distance!
