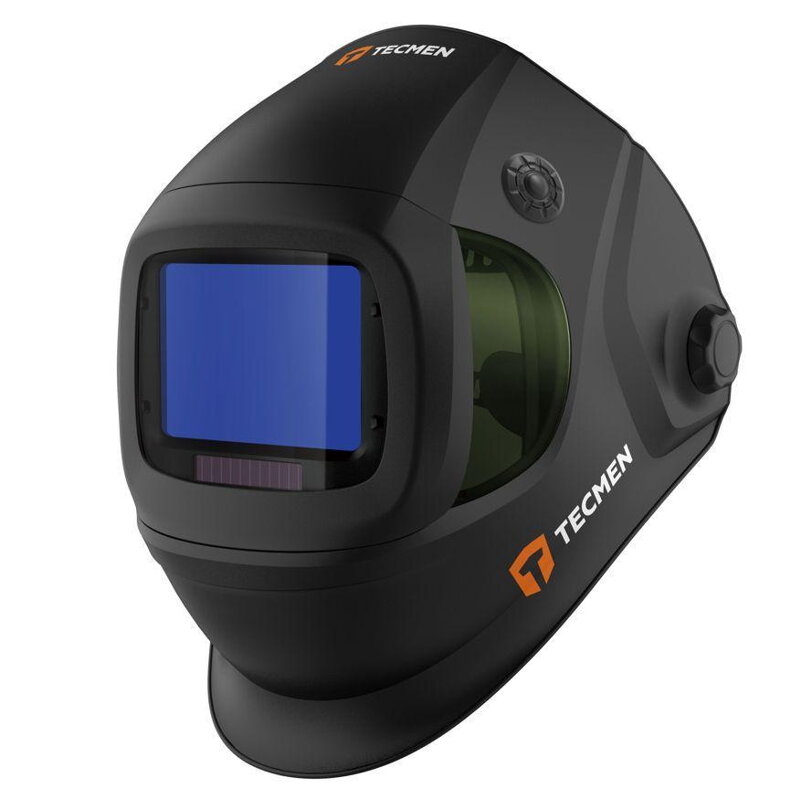

TECMEN 950-G welding helmet

Pivot headgear design ensures maximum comfort, making it easy to wear for extended periods. Shade 5 side lenses enhance your surrounding vision, improving safety and providing added security.

Side lenses and digital display
Features maximum field of view and easy observation of the surroundings.

Ultra-wide field of view
107x75 mm field of view, providing an expansive and clear perspective of your work environment.

Side lenses
Shade 5 side lenses on both sides, maximizing the welder's field of view. Enhance surrounding vision, minimize workplace hazard.

Digital display
The smart digital backlit screen ensures clear and accurate visibility of your welding settings, even in low-light or dark environments.

External grinding control
Allows for quick switch between welding and grinding modes without lifting your welding helmet or gloves.

Specifications Welding Helmet 950-G:

• Viewing area  107*75 mm (950-G)
• Arc sensor   4
• Dark state   5-8/9-13
• Power on/off   Automatic on/off
• UV/IR protection   Up to DIN 16 at all times
• Delay (dark to light)   0.1-1.0s adjustable by digital display control
• Low amperage TIG rated   ≥2 amps (DC); ≥2 amps (AC)
• Low battery indicator   Digital display
• Storing temp.   -20℃ to 70℃
• Optical class   1/1/1/1
• Cartridge size   156*123*33mm
• Light state   DIN4.0
• Shade control   Internal (digital display control)
• Sensitivity control   Digital display control
• Power supply   Solar cell with 2 replaceable CR2450 lithium battery
• Switching time   1/25000s from light to dark
• Grinding   Yes
• Helmet material   High impact resistant nylon
