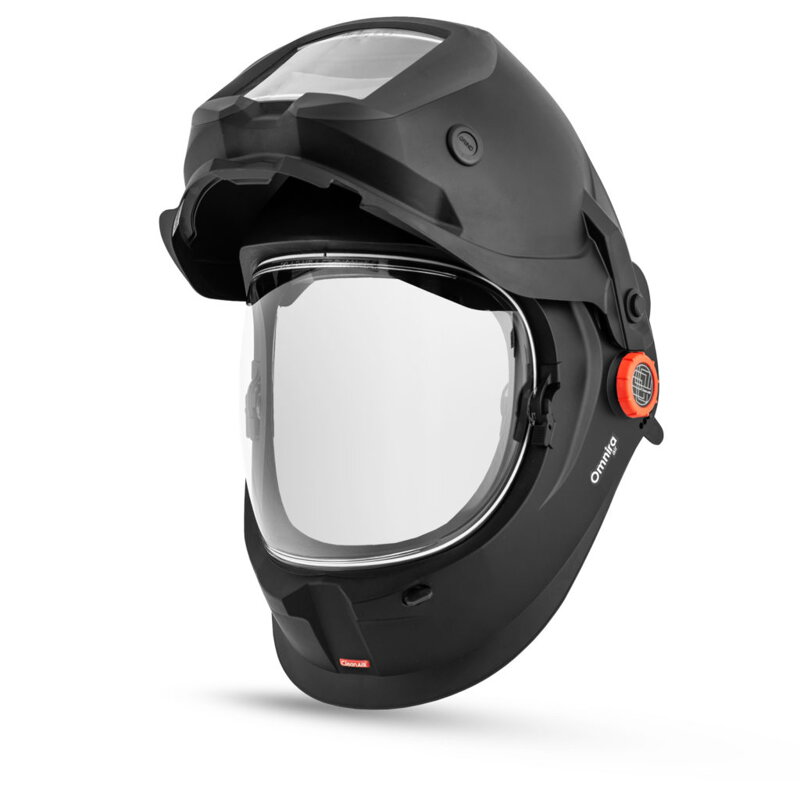

CleanAIR® Omnira COMBI Welding helmet

TECHNICAL DATASHEET CleanAIR® Omnira COMBI

The flagship of our welding helmets, without air distribution.

The Omnira COMBI welding helmet redefines welding experiences. It incorporates a flip-up front, enabling quick lifting of the welding shield to achieve an unobstructed and expansive field of vision without the need to raise the entire helmet. The helmet features a clear visor engineered to deliver exceptional optical quality, high mechanical resistance, and an anti-fog coating.

Areas of application

Professional flip-up welding helmet suitable for most of welding processes such as MIG/MAG, SMAW, TIG, Plasma Arc welding and cutting, Carbon Arc gouging, gas welding and cutting. Thanks to the large clear visor it is very convenient for grinding.

Features & Benefits

• The flip-up front can be lifted up whenever the wide undisturbed view is needed
• The flip-up system allows you to switch between welding and grinding without compromising respiratory protection
• The highest respiratory protection and more comfort thanks to an advanced built-in air distribution system
• True colour ADF with the highest optical quality 1/1/1/1
• Fast and easy replacement of all spare parts

Technical data

• Weight 1017 g
• Material Welding shield – PA
• Material ADF – PA, PC, Glass
• Material Protection plate – PC
• Material Headgear – PP, PA
• ADF dimension 110 x 90 x 7 mm
• Shade level DIN 5–14
• Open state shade DIN 3
• Viewing area 98 x 62 mm
• Hose connection QuickLOCK™
• Certification / NPF – respiratrory protection powered air purifying respirators – EN 12941, TH3 / NPF 500airline sytems (supplied air) – EN 14594 (3B) / NPF 200
• Certification – eye and face protection protective visor TR1 – EN166 1 FT B K N, frame – EN166 3 4 5 FT B 5/2-5
• Cod  403201
