Optrel HELIX 2.5 Welding helmet

 Optrel Helix product brochure

Specifications:

With the helix 2.5, optrel offers a welding helmet for work under the most difficult conditions. A slide-up helmet with internal ADF that has all the technical features of an optrel helmet:

• Panorama XXL field of view,
• ShadeTronic®,
• Fadetronic,
• rechargeable battery unit with charging via welding arc and
• 5-point multi-detection sensor technology.

With the helix 2.5, you are equipped for all welding tasks that require a large field of view and frequent switching between clear and protective filters. With a brightness level of 2.5 during welding and a shading level range from 5 to 12, it is the ideal choice for a wide range of applications.

The optrel helix 2.5 is available with integrated IsoFit® headgear and with hardHat according to EN397 industry standard.

Panorama-XXL-field of view - A six times larger field of view*. Everything in view. Best views.

The patented nose cutout brings the glare shield closer to your eyes. The result: a much larger field of vision and a clear separation between the mouth and eye area, which also prevents tarnishing of the protective lens.

ShadeTronic®: Always the right shading level. Fully automatic. Stepless. Safe.

A light sensor permanently measures the intensity of the welding arc and continuously regulates the glare protection over the entire shading level range.

Uninterrupted work at any welding light intensity.

For even more comfort when working with optrel helix:

• Fadetronic: Fade-out when switching off the protection level after welding. Wellness for your eyes for fatigue-free work.

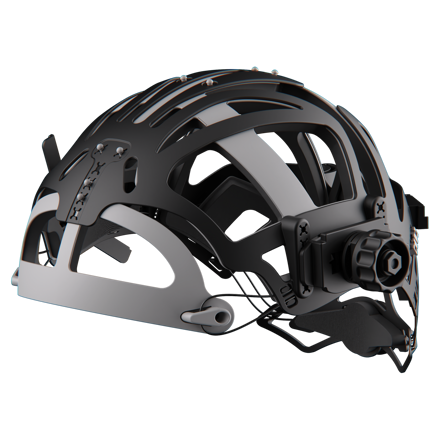

• Isofit® Headgear: The headgear with numerous adjustment functions. For your personal best wearing comfort.
• Multi-Sensor-Detection: Intelligent control with five sensors protects you perfectly - even in the most difficult lighting conditions.

HELIX 2.5

Hard work never felt so easy.

With the helix 2.5, you are equipped for all welding tasks that require a large field of view and frequent switching between clear and protective filters. With a brightness level of 2.5 for welding and a shading level range of 5 to 12, it is the ideal choice for a wide range of applications.

Fields of Application:

• Elektrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grind Mode

Technical Data:

• Shade levelsShadeTronic inactive: shade level 2,5. active, manual: shade levels 7-12. ShadeTronic 5<12M with individual calibration option ± 2.
• Energy supplysolar cells, Li polymer battery pack, chargeable via Micro-USB
• Battery life range300 to 500 charging cycles
• Sensoric Five sensors
• Sensitivity continuously, new with "Super High" sensitivity
• Switching timelight to dark: 0,090 ms at 23°C. 0,070 ms at 55°C
• dark to light: 0,1 s to 2,0 s (with FadeTronic)
• Field of vision 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
• Classification EN3791/1/1/2
• Shape stability: Mask up to 220 °C. Front cover lens: up to 137 °C
• Eye protection UV/IR protection: maximum protection at all shade levels
• Operating temperature-10°C to + 55°C / 14°F to 131°F
• Storage temperature-20°C to + 70°C / -4°F to 158°F
• Weight620 g
• StandardsCE, UKCA, ANSI Z87.1, EAC, AS/NZS, EN 166, compliant with CSA Z94.3. Compliant with pr ISO 16321 standard „WIG+" („low amp Tig")
• Scope of delivery Welding helmet, optrel IsoFit® headgear, manual, bag, Micro USB cable, front cover lens, warranty card
• Warranty from date of purchase: 2 years for manufacturing and material defects, 6 months for battery
