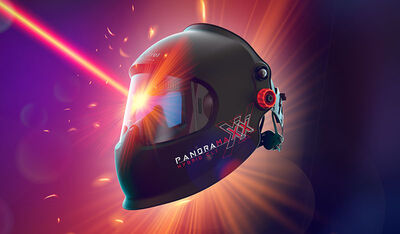

Optrel PANORAMAXX HYBRID Welding helmet


panoramaxx laser-series Launchflyer

Specifications PANORAMAXX HYBRID:

It is your ideal companion for hand-held laser welding and conventional arc welding. During laser welding, the infrared radiation with its deep penetration depth can immediately and irreparably damage your eyesight. This can happen even with reflections. It is therefore essential to wear suitable eye and face protection. To avoid inhaling invisible pollutants during the laser process, suitable respiratory protection systems must be included in your PPE.

Now also suitable for laser welding

Hand-held laser welding is becoming increasingly popular: It is a simple, highly precise and very efficient method, but also extremely dangerous, especially for the eyes.

Once again, we have pushed the limits of what is possible. In collaboration with our prestigious partner laservison, we have devised a unique protection solution. The optrel panoramaxx hybrid series. It is our answer to the dangers posed by high-energy laser beams. There is also an automatic helmet for users who enjoy both hand-held laser welding and conventional arc welding!

Integrated laser safety glasses - Closed eye protection thanks to the patent-pending inner-frame solution.

Panoramaxx XXL field of view - A 6 times larger field of vision than standard welding helmets thanks to thenose cut-out.

Light as a feather and well balanced - For maximum comfort and perfect ergonomics.

Position Locker - New two-position locking function for a securely opened or closed helmet. The helmets without fresh air (pure air) can also be fitted with the optrel hard hat (construction helmet).

Laser and welding protection - New with ISO certification of the welding filter and certification of the laser protection filter.

Protection level 5-13 - Wide range of protection levels for many applications.

Complete equipment as standard:

All members of the panoramaxx hybrid series have a large field of vision thanks to the proven nose cut-out and crystal-clear optics, as well as state-of-the-art digital electronics, which together form a valuable assistance system. The patented ShadeTronic® and FadeTronic technology in combination with the 5-point sensor system and the re-charge energy concept are the core elements.

They enable focused and uninterrupted work for more quality and increased efficiency. And thanks to the perfectly fitting optrel lsoFit® headband, the new panoramaxx hybrid series is light as a feather and fatigue-free to wear. Their helmets are highly robust with the lowest possible weight and protect the user against mechanical external influences such as grinding mode and the incomparable look make even grinding work even more fun.

Perfectly combined with an optrel respiratory protection system

The helmets of the panoramaxx hybrid series are compatible with the world's largest selection of TH3-certified respiratory protection solutions thanks to full compatibility with the optrel e3000X / suppliedair (pure air models) and the optrel swiss air (all models).

The following combinations are perfectly matched:

Fields of Application:

• Suitable for laser welding! Laser range 1000 - 1100 nm
• Elektrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Plasma Cutting
• Gas Welding
• Grind Mode

Technical Data:

• Shade levels - ShadeTronic inactive: shade level 3, active. manual: shade levels 4-9. ShadeTronic 5-13
• Energy supply - solar cells, Li polymer battery pack, chargeable via Micro-USB
• Battery life range - 300 to 500 charging cycles
• Sensoric - Five sensors
• Sensitivity - continuously, new with "Super High" sensitivity
• Switching time - light to dark:. 0.090 ms at 20°C; 0.070 ms at 55°C. dark to light:. 0.1 s to 2.0 s (with FadeTronic)
• Field of vision - 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
• Classification Welding - 16321 OS W2.5/3-8/4<12 V2. Viewing angle dependency = V2. EN ISO 16321-2 (EN166): Front pane = E (B). EN ISO 16321-2 (EN166): Inner protective screen = E (B). EN ISO 16321-2 (EN175): Helmschale = E (B). ANSI Z87.1: Z87+
• Laser classification for eye - EN 207: 1000-1100 D LB7 IR LB8 OS CE
• protection - ISO 19818-1: 1000-1100 OD7 C5 PS3
• Inner protective frame - EN 207: 1000-1100 D LB7 IR LB8 OS. ISO 19818-1: 1000-1100 OD7 C5 PS3

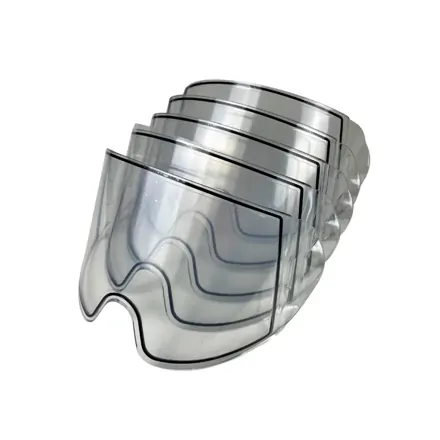

• Shape stability - Mask: up to 220°C. Front cover lens: up to 137°C
• Eye protection - UV/IR protection: maximum protection at all shade levels
• Operating temperature - -10°C to + 55°C / 14°F to 131°F
• Storage temperature - -20°C to + 70°C / -4°F to 158°F
• Weight - 695 g (PAPR 795g)
• Standards - CE, ANSI, UKCA, EAC, AS/NZS, compliant with CSA Z94.3, additionally with PAPR version EN 12941. (TH3) and suppliedair version EN 14594 (3B). Compliant with pr ISO 16321 standard „WIG+" („low amp Tig")
• Scope of delivery - Welding helmet, bag, Micro USB cable, warranty card
• Warranty - from date of purchase: 2 years for manufacturing and material defects, 6 months for battery
