Optrel Swiss Air

 Optrel Swiss Air (EN)

Technical description:

• The revolutionary Optrel Swiss Air filter unit reliably filters out 99.8% of all harmful particles, aerosols, vapors, smoke and viruses
• It completely covers the mouth and nose area and protects your airways at the highest TH3 level
• Particle filter TH3 = filtration of 99.8% of pollutants
• Continuously adjustable air flow 100 - 130 l / min
• 14-hour battery life
• Automatic compensation of altitude and temperature
• Breathing support
• It meets the highest requirements for professional respiratory protection systems
• The mask is made of POM (polyoxymethylene), ripstop textile (98% polyester and 2% polyurethane) and non-flammable polyurethane foam. The exhalation valve contains a silicone membrane

Breathing unit with automatic air flow calibration

• Continuous air flow regulation for maximum work comfort 100 - 130 l / min. All levels have automatic air flow regulation
• The levels are set directly on the blower and can be continuously adjusted using the front control panel (level 1: min. 100 l / min, level 2: min. 115 l / min, level 3: min. 130 l / min)
• Fan - high quality motor with ball bearings
• Electronic fuse
• Material: PA66 GF30,
• Alarm: visual and audible for low/very low battery, clogged filter, no filter and low air flow
• Low battery: alarm frequency 3.0s (1.5s on, 1.5s off)
• Filter: alarm frequency 0.5s (0.25s on, 0.25s off)

Control panel for setting all functions centrally from the front

• Provides an overview of filter contamination and battery status
• Continuous control of the air flow and the possibility of switching ON/OFF
• Automatic compensation of altitude and temperature

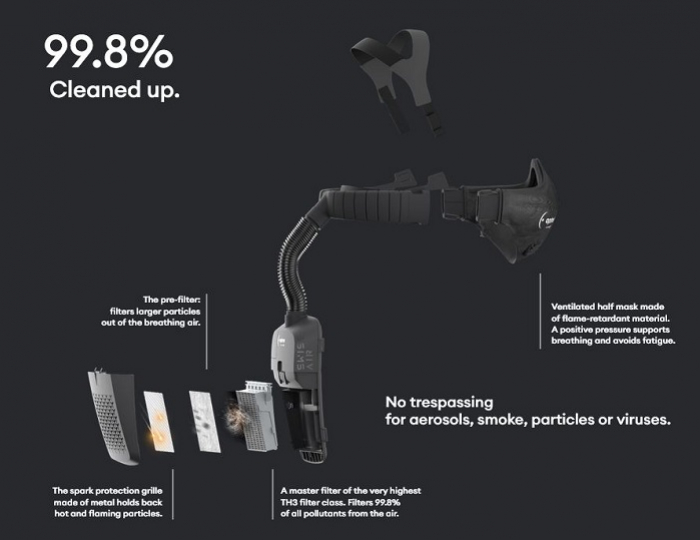

Powerful TH3 filter unit with an innovative ultra-flat design

• A ventilated half-mask made of fire-resistant material fully covers the mouth and nose area
• Positive pressure supports breathing and reduces fatigue
• Light and comfortable to carry, highly efficient in use
• Ergonomic and narrow (48 mm) blower unit with automatic air flow calibration and 14h. high-performance battery for a continuous working day

Comfort when wearing Optrel Swiss Air filter ventilation

• Shoulder strap for ergonomically perfect weight distribution of the super light filter system (only 550 g)
• Continuously adjustable fastening for all sizes from XS to XL
• Y-hose with adjustable neck strap and flexible hose elements directs air directly into the half mask

Areas of use:

• Metal processing - grinding, welding, plasma cutting, preparatory work,
• Working with wood,
• Automobile industry,
• Building industry,
• Chemical industry,
• Refrigeration industry,
• Food industry,
• Laboratories, pharmacy,
• Healthcare

What standards does Optrel Swiss Air meet?

• EN 12941
• Europe: TH3
• Australia: P3
• AS/NZS 1716
• EAC TP TC 019/2011
• Notified body (exam): CE 1024

Technical parameters:

• Weight: filter unit 550 g / Total system 1,200 g
• Use: Professional
• Protection: TH3 (EN 12941)
• Flow: 100 - 130 l/min
• Noise level: max. 70dbA
• Unit dimensions: 250 x 170 x 50 mm
• Battery life: 14 hours

Optrel SWISS AIR package contents:

• Comfortable half mask
• Blower unit with hose
• Filter TH3P R SL
• Head and neck strap
• Shoulder harness
• Control panel
• Charger
• Battery
• Backpack Optrel
• Charging cable
• Manual
