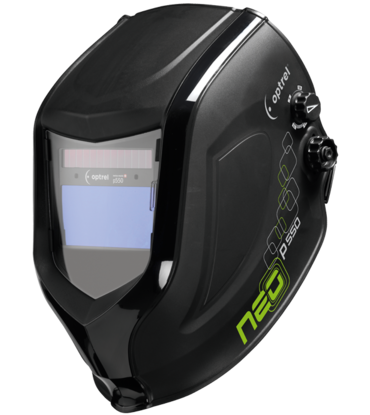

Optrel NEO P550 Welding helmet

Optrel NEO P550 Salesflyer

True Color View - The specially developed UV/IR filter allows a realistic perception of colors, at long last bringing color into the world of the welder.

New Energy Concept - With its radically more energy efficient electronic system including a „Super-Sleep-Mode" the neo p550 stays ready to use for approximately 3,000 hours without changing batteries.

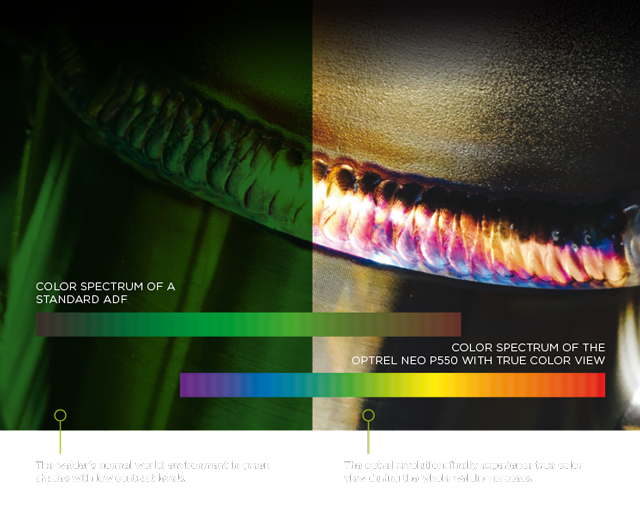

The welder's normal world:
environment in green shades with low contrast levels.

The optrel revolution:
finally experience true color view during the whole welding process.

NEO P550 GREEN

new. efficient. optimal.

The optrel neo p550 combines the advantages of the proven p550 helmet shell with the newest ADF technology from optrel. Experience true color vision in a mid-price helmet. With a new efficient energy concept that keeps it action-ready for 3,000 hours. And a reaction time of only 0.1 ms after striking a welding arc. Perfect protection and comfort for your eyes!

Fields of Application:

• Elektrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Micro Plasma Arc Welding
• Plasma Cutting

Technical Data:

• Shade levels - inactive: Shade level 4. active: Shade level 9-13
• Power supply - Solar cells, 2 pcs batteries 3V exchangeable (CR2032)
• Operating time batteries - Approx. 3,000 hours (operating)
• Sensors - 3 sensors
• Sensitivity - Continuously adjustable, new with "Super High" sensitivity
• Switching time - light to dark: 0.100 ms at room temperature, 0.100 ms at 55°C. dark to light: 0.05 s - 1.0 s
• Classification EN379 - Optical class: 1. Scattered light: 1. Homogeneity: 1. Angular dependence: 2
• Field of view - 50 x 100 mm. 90 x 110 x 9.5 mm
• Shape stability - Welding mask: up to 220°C / 428°F. Front cover lens: up to 137°C / 266°F
• Eye protection - Ultraviolet / Infrared Protection: maximum protection at any shade level
• Operating temperature - -10°C to + 70°C / 14°F to 158°F
• Storage temperature - -20°C to + 70°C / -4°F to 176°F
• Weight - 495 g / 17.4 oz
• Scope of delivery - Welding helmet, instruction manual, batteries

                    BLACK                                                      GREEN
