Optrel LITEFLIP AUTOPILOT Welding helmet

Optrel LITLEFLIP AUTOPILOT Sales Folder

Automatically darkens as soon as the welding arc ignites. No manual shade level setting necessary. The optrel liteflip autopilot automatically adjusts to changing lighting.

The optrel liteflip autopilot

The Fully Automated Welding Maskautomatically darkens as soon as the welding arc ignites. No manual shade level setting necessary. The optrel liteflip autopilot automatically adjusts to changing lighting.

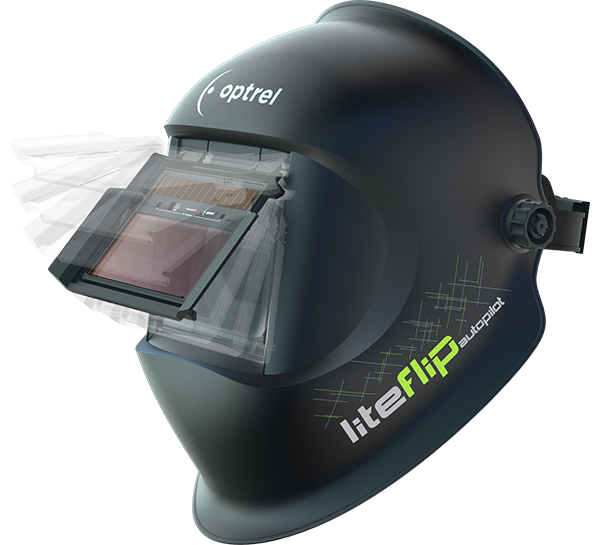

Super lightweight flip-up welding helmet with automatic shade level adjustment makes welding much more comfortable and easy.

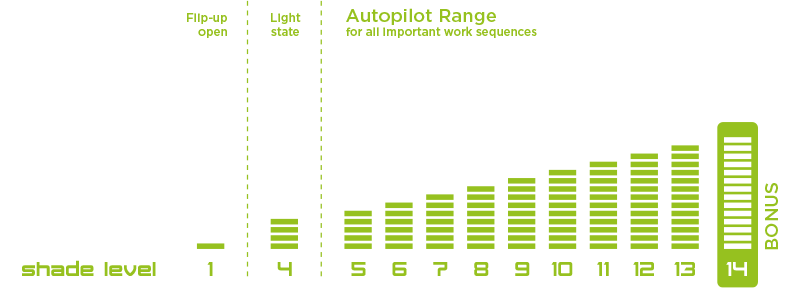

• Autopilot with shade level 1 / 4 / 5 to 14
• True color view due to special developed UV-/IR-filter
• Patented twilight function opens the ADF slowly from dark to light state
• With only 530g weight one of the lightest flip-ups on the market
• Perfectly combined with optrel e3000 PAPR System
• Register your optrel product now and get 1 additional year of warranty free

Discover the optrel comfort features

LITEFLIP AUTOPILOT

Look into the Future.

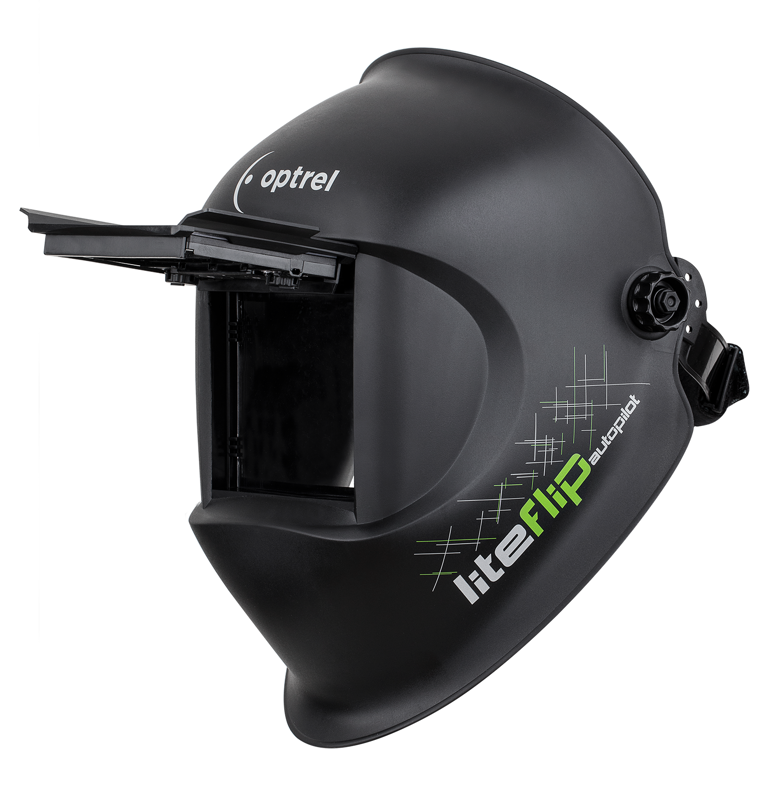

Fully-automatic welding helmet (manual adjustment of the shade level not at all necessary) with flip-up function for clear view.

True color view, ADF with shade level range 4/5-14 with autopilot (fully-automated shade level adjustment), +/- 2 individual shade level correction, sensitivity adjustment and delay function with twilight function.

Fields of Application:

• Elektrode Welding (Stick Welding, SMAW)
• MIG/MAG (GMAW)
• GMAW High melting rate process
• Flux Cored Wire Welding
• TIG Welding (GTAW)
• Plasma Arc Welding
• Plasma Cutting
• Grinding

Technical Data:

• Shade levels - Open / clear view: shade level 1. Closed / inactive: shade level 4. Closed / active: shade levels 5-14
• Autopilot - Automatic shade level adjustment for shade level range 5 to 14 with individual calibration option of ± 2.
• Power supply - Photovoltaic cell, 2 pcs batteries 3V exchangeable (CR2032)
• Operating time batteries - Approx. 3,000 hours (operating)
• Sensors - 3 sensors
• Sensitivity - Infinite adjustment, new with "Super High" range
• Switching time - Light to dark: 0.100 ms at room temperature, 0.100 ms at 55°C / 131°F
• Dark to light: 0.3 s or 1.5 s (with twilight function)
• Field of view - Flip-up open: 82 x 102 mm. Flip-up closed: 50 x 100 mm
• Classification - Optical class: 1. Scattered light: 1. Homogeneity: 1. Angular dependence: 2
• Shape stability - Welding mask: up to 220°C / 428°F. Front cover lens: up to 137°C / 279°F
• Eye protection - Ultraviolet / Infrared Protection: maximum protection at any shade level
• Operating temperature - -10°C to +70°C / 14°F to 158°F
• Storage temperature -  -20°C to +80°C / -4°F to 176°F
• Weight - Standard helmet: 530 g / 18.7 oz. PAPR helmet: 730 g / 25.8 oz
• Scope of delivery - Welding helmet, instruction manual, storage bag, batteries, warranty card
