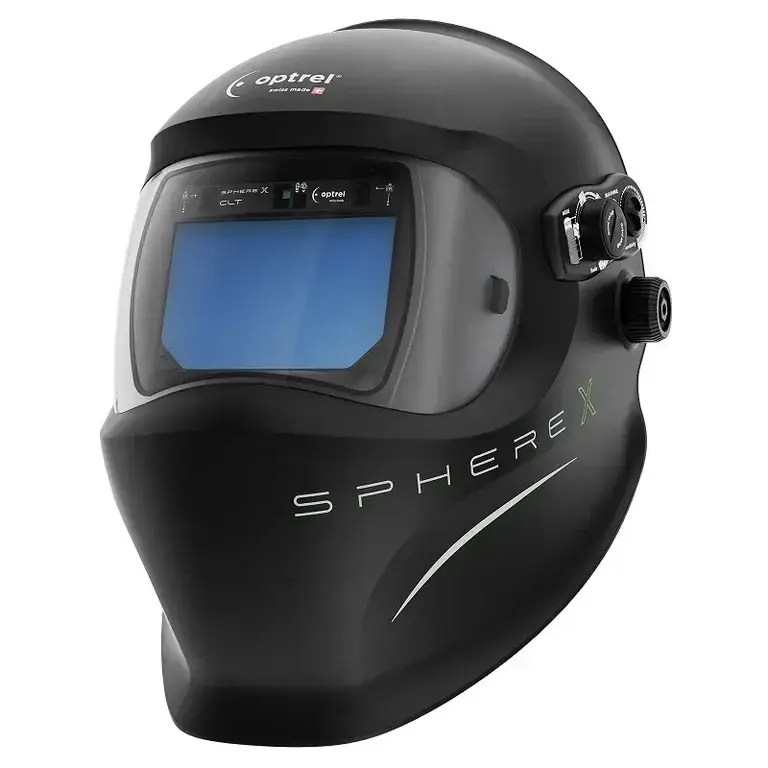

⭐ Optrel SPHERE X CLT

optrel sphereX Produktflyer

Take advantage of its clever features now:

✅ A field of view that is over 30% larger, combined with Crystal Lens Technology (CLT) for a perfect viewing experience in every situation.

✅ Three-dimensionally adjustable IsoFit® X headgear for increased comfort. Ideal for work where a helmet is required thanks to its integrated industrial safety helmet adapter. You can easily attach the industrial safety helmet with just 2 clicks.

✅ Stabilisation of your helmet shell with our two-position locking function (Position Locker), because we always offer you comfortable and safe working solutions.

✅ Proven technologies such as ShadeTronic® and Multi-Sensor Detection with 5 sensors ensure that your PPE keeps pace with technological advances in safety.

✅ The smoke-repellent helmet shell design protects your health even better against harmful substances and always gives you a clear view. For higher quality work with fewer errors.

What makes CLT different from other technologies?
While standard helmets depict the world in neutral tones, CLT 2.0 renders exact colours across the entire spectrum, in high contrast and with unparalleled brightness. The result is a precise and true-colour view of the welding area. This makes it easier for you to machine the weld pool while offering an unimpeded and crystal-clear view of the entire work area before, during and after welding. All of this is possible thanks to a high-tech coating process which is carried out in a vacuum chamber with atmospheric conditions simulating the space environment.

Vision like in daylight – even in the lowest ampere range.
Ideal for delicate seams and the highest demands. - Crystal-clear brightness level 2.0 for an optimum view, even between the welding points - Perfect for stainless steel, aluminium and thin sheet metal - Minimal colour distortion, highest level of detail

Technical data:

• Classification EN379: 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
• Colour of knobs: black
• Colour of welding helmet: black
• Power supply: Solar cells, 2 x replaceable 3 V button cell batteries (CR2032)
• Product Group: Automatic welding helmet
• Product Series: sphereX
• Product Typ: Welding series
• Protection level (not activated): 2.0
• Protection levels (automatic): 5 – 12
• Protection levels (manual): 8 – 12, 4 – 8
• Sensitivity adjustement: continuously, with "Super High" sensitivity range
• Sensoric: 5 sensors
• Version helmet: clt
• Weight: 640 g / 22 57 oz

Applications:

• All electric welding processes:
• Electrode welding (Stick Welding, SMAW) / MIG / MAG (Metal Inert Gas Welding, GMAW) / GMAW high-performance welding / Flux-cored welding / TIG welding (TIG, GTAW) / Plasma welding / Microplasma welding / Plasma cutting
• Grinding in grinding mode
• Not suitable for laser welding!
