Kowax KWX730ARC MAX 2,5

NEW

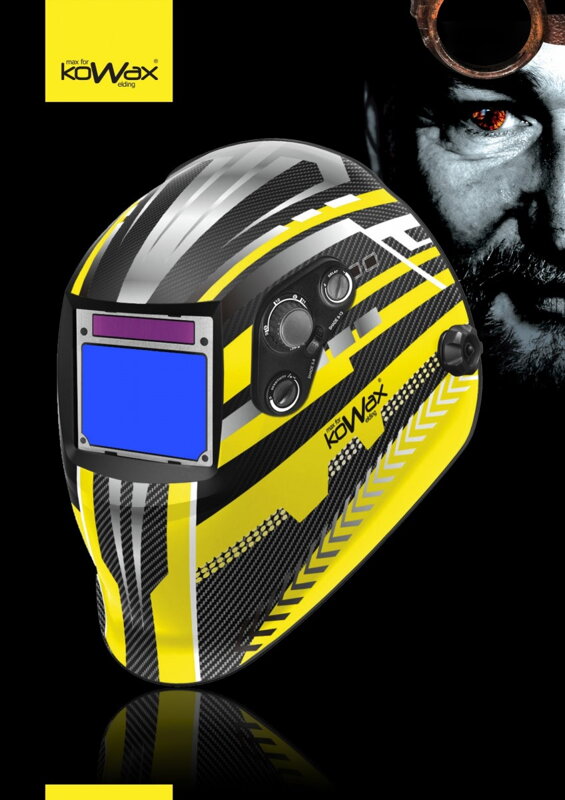

Auto darkening welding helmet Kowax KWX730ARC MAX 2,5 with DIN 2,5 inactive shade level + real colors - it is clearly the best choice for all TIG applications, grinding and precision welding in general. Read more

On stock

156 €

130 € excl. VAT

Producer: Kowax

Description

Description:

  • aperture DIN2.5 in bright condition represents up to 4x brighter image compared to standard DIN4.0 on the market
  • real colors on the entire color spectrum, true presentation, red, yellow, blue, green colors
  • field of view size: 95 x 62 mm
  • 4 optical sensors
  • permanent protection against UV/IR radiation (ultraviolet and infrared light spectrum) aperture 16 according to DIN – the highest in its class on the market
  • aperture with brightened filter 2.5 according to DIN
  • continuously variable aperture when darkened filters (when welding) 5-8, 8-12 according to DIN controlled externally by potentiometer
  • reliable arc detection from 2 [A] (also in pulse)
  • the filter is powered by a solar cell + a replaceable CR2450 lithium battery, this solution ensures a long service life
  • the self-dimming filter is equipped with a low battery LED indicator
  • delay setting, you can then set how long after the arc is extinguished the filter brightens again (up to f/2.5) to compensate for the residual brightness that the weld/weld can produce
  • this time can be smoothly regulated in the range of 0.1~1s with an internal potentiometer
  • dimming speed after starting the arc 0.04 ms
  • off/on - automatic
  • function: grinding (external controller)
  • suitable for: Excellent for low TIG ≥2 [A]/DC; ≥2 [A]/AC, MIG/MAG; MIG/MAG Pulse; Plasma cutting/welding; MMA, TIG, etc. see manual
  • front cover film with seal - this is very important - along the unsealed cover film, fumes and dirt can enter the hood to the filter
  • arched front cover film – ensures better reflection of splashes, radiation and also an air gap between the cover film and the self-darkening filter for better air circulation in front of the filter
  • operating temperature from -10°C ~ +55°C – the best values in its class on the market
  • weight 580g

kwx730



Technical data:

  • Optical class according to EN379 1/1/1/2
  • Filter dimensions 110 x 90 x 9 mm
  • Field of view 95 x 62 mm
  • Number of sensors 4
  • Protection against UV / IR radiation DIN 16
  • DIN brightened 2.5
  • DIN darkened 5-8 / 9-13 adjustable externally
  • Power source solar cell + 1 x CR2450 lit.bat.
  • Turn on / off full automatic
  • Low battery indicator YES
  • Battery Capacity Test YES
  • Grinding function / modes (external switch), TIG from ≥2
  • Sensitivity adjustable externally
  • Dimming rate 0.04 ms
  • Dark-to-light transition 0.1 - 1 s (with external control)
  • Operating temperature -10 °C to + 55 °C
  • material Nylon
  • Certified: CE, DINplus, ANSI Z87.1, CSA Z94.3
