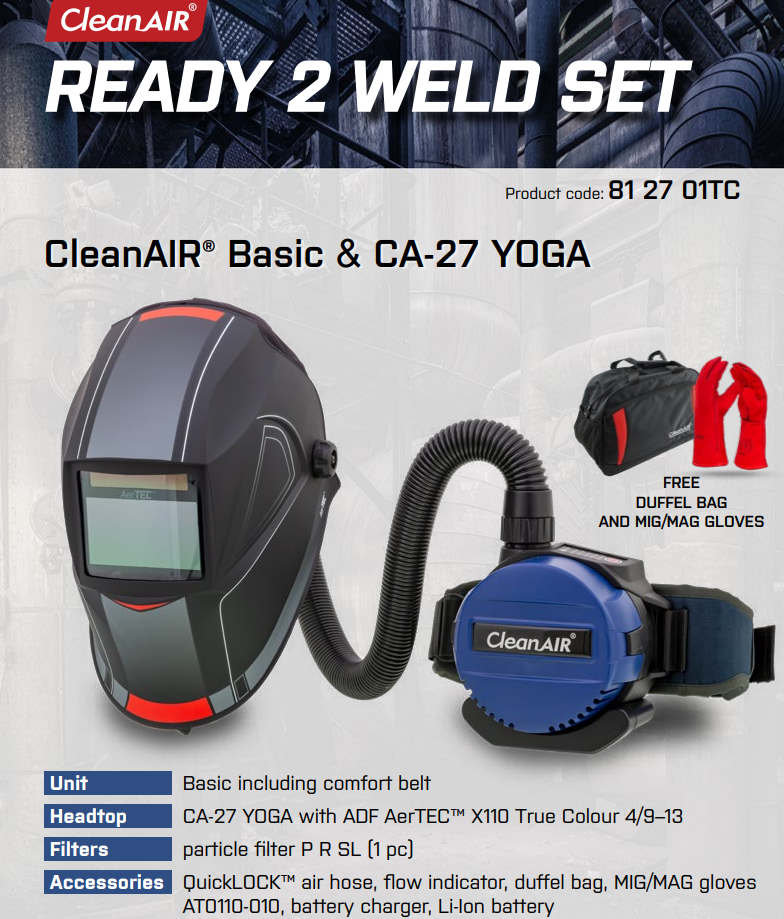

Welding set CA-27 YOGA X110 true colour, 9-13 + CleanAIR Basic EVO

Description CA-27 YOGA:

The AerTEC® YOGA represents a high-quality welding helmet for the price you can afford. The new YOGA concept uses a lightweight though durable welding shield in combination with high-quality auto-darkening filter X110 true colour, 9-13. This solution is suitable for most of the welding methods including TIG, even with very low welding currents.

Areas of application CA-27 YOGA:

Suitable for most of welding methods.

Features & Benefits CA-27 YOGA:

• Advantageous price/performance ratio
• Lightweight and comfortable
• Enlarged viewing area 100×53 mm
• Continuously adjustable shade 9–13
• The wide range of adjustable sensor sensitivity
• Individual delay settings
• Grinding mode
• Compatible with wide range of CleanAIR® respirators

Technical specification welding auto-darkening filter (ADF) AerTEC™ X110 true colour, 9-13:

• True colour  Yes
• Product code 40 51 10
• Standards EN 379
• Optical classes 1/1/1/2
• Cartridge size 110 x 90 x 9 mm
• Viewing area 100 x 53 mm
• Weight 120 g
• Arc sensors number 4
• Open state shade 4
• Closed state shade 9- 13
• Shade adjustment yes, Internal
• Sensitivity adjustment yes, Internal
• Delay adjustment yes, Internal
• Grinding mode yes, Internal
• Switching time light to dark 0,03 ms
• Switching time dark to light 0,1- 1,0 s
• UV/IR protection UV 16/ IR 16
• Power supply CR2032+ solar cell
• Low battery indication yes
• TIG recognition Enhanced
• Working temeratures -10°C + 60°C
• Warranty 2 years
• Storage conditions -10 °C to + 55 °C, humidity 20- 95% RH
• Operating conditions +0 °C to + 60, humidity 20- 95% RH

ADF options

New AerTEC™ auto-darkening welding filters offer a great price-performance ratio. Advanced control options including shade, sensitivity and delay adjustment and grind/weld function are available. Wide field of vision thanks to the enlarged lens with True Colour feature (AerTEC™ X110) alowing realiastic colour perception.

Description CA BASIC:
CleanAir Basic EVO is an Electric-motor-driven, battery-powered fresh air unit. It is approved for use with Evermatic PAPR helmets and lightweight CA facepieces.
The unit is eqquiped with a type P3 filter that effectively removes air-borne impurities and delivers filtered air into welder´s headpiece. The P3 filter is effective against solids and liquids, including dust, mist, welding fumes, microoragnisms and radioactive particles.
A blower provides a flow of air that helps to keep the welder cool, even in hot conditions, and prevents the welding filter from misting. The blower is worn on the waist using a padded belt, large in width for great support and added comfort. A fresh air unit guarantees a high level of protection, even in demanding environments.

Technical data CA BASIC:

• Air flow – adjustable 170–240 lpm
• Operation time Up to 10 hours
• Charging time 4–5 hours
• Weight 880 g (including battery)
• Noisiness max. 70 dB
• Dimensions 191 mm / 173 mm / 104 mm
• Battery Li-Ion 7,2 V / 4,4 Ah
• Certification EN 12941 TH3

Includes:

• CA Basic EVO
• battery
• Flow indicator
• support standard belt
• charger with connector for EUR, UK, US, AUS
• Filter P R SL
• Light fl exi hose (QuickLOCK™ - CA40x1/7")
• Welding helmet CA-27 YOGA with filter AerTEC™ X110 true colour, 9-13 , incl. air distribution
• CleanAIR® duffel bag
• MIG/MAG welding gloves
