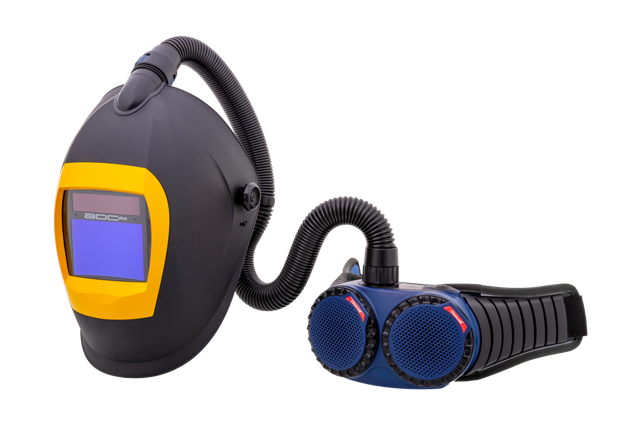

CleanAIR AerGO + welding helmet Balder CA-20 GDS

Technical description CleanAIR AerGO:

• the unit is equipped with constant air flow control and an advanced electronic system for warning the user in the event of a sudden drop in flow or a low state of battery charge
• ergonomic shape, low weight and low profile of the unit guarantee high comfort of use even in areas with limited mobility
• compatible with a wide range of CleanAIR® head parts for various industrial applications

Area of application of CleanAIR AerGO:

• Dusty industrial environments, including applications with pollutants in the form of gases and vapors
• Automotive industry, shipbuilding
• Welding, grinding, surface treatment
• Construction, agriculture

Features & Benefits:

• Ergonomic design and low weight – only 980 g
• Slim profile of the unit – only 65 mm
• Universal usage – filtration of particulate contaminants, gases and vapours
• Operation time is up to 10 hours with the standard battery
• Short battery recharging time less than 3 hours (standard battery)
• Adjustable airflow (160 lpm and 210 lpm)
• Constant airflow control regardless to the state of the filter and the battery capacity
• Audiovisual and vibrating alarm indicating a low airflow and a low battery charge
• Simple control with only one button
• Ergonomic and comfortable belt which is easy to exchange
• Unique solution of the filter sealing which provides a perfect unit seal after every change of the filter

Technical data:

• Air flow 160 lpm and 210 lpm
• Operation time* up to 10 hours with Standard battery
• Weight 980 g (incl. standard battery)
• Noisiness max. 70 dB
• Dimensions 235 mm / 126 mm / 65 mm
• Battery Standard Li-Ion 14,4 V / 2,6 Ah
• Certification EN 12941 TH3

Technical description BALDER CA-20 GDS 6-8 / 9-13:

• The CA-20 protective helmet is intended for use with filter-ventilation units or a compressed air system. The innovative solution of the integrated air distribution inside the hood and the possibility of individual adjustment of the direction of air flow guarantees a high level and degree of protection of the welder's breathing.
• The hood with an attractive design and low weight is balanced and comfortable. Impact resistant, also suitable for grinding. The enlarged field of view is 97 x 68 mm. Protective foils and welding cartridges are easy to replace. Top optical quality 1/1/1/1. ADC plus technology is currently the only cartridge with a rating of 1 to compensate for angular dependence according to EN 379. The hood has an integrated breathing distribution with the possibility of adjusting the air flow.

Technical parameters of BALDER CA-20 GDS 6-8 / 9-13:

• EN379 certification
• Optical class: 1/1/1/1
• Field of view: 97 x 68 mm
• Dimensions: 110 x 100 mm
• Weight: 165 g
• Light condition: 4 Dark condition: 6 - 8/9 - 13
• Darkness adjustment: external
• Sensitivity setting: yes
• Setting the lighting delay: yes - external
• Grinding mode: yes - external
• Darkening rate at 23 ° C: 0.15 ms
• Lighting speed: 0.2 - 0.8 s
• UV / IR protection: UV 16 / IR 16
• Power supply: solar cells, no need to change batteries

Included:

• CleanAIR AerGO filter ventilation unit
• 2x filter P R SL
• Li-Ion battery 14.4V / 2.6Ah
• Belt
• Flow indicator
• Automatic charger
• Lightweight flexible hose QuickLOCK - CA40x1 / 7 "
• Self-darkening helmet Balder CA-20 GDS V6-8 / 9-13 with adjustment for breathing
